用于JC7软管可重复使用的金属箍
REUSABLE FERRULE FOR JC7 HOSE
| Codice / Part Nr. |
Tubo / Hose |
A |
B |
E |
| BJC7R12 |
1/2" |
21.6 |
5/8" UNF |
27 |
| BJC7R34 |
3/4" |
29.6 |
M24x1.5 |
36 |
| BJC7R1 |
1" |
36.9 |
M31.5x1.5 |
46 |
| BJC7R114 |
1" 1/4 |
45 |
M40x1.5 |
55 |

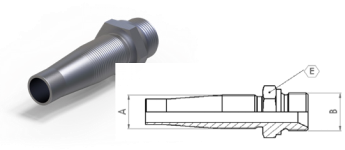

用于JC7软管可重复使用的雄性BSPP 60°锥形
REUSABLE MALE BSPP 60° CONE FOR JC7 HOSE
| Codice / Part Nr. |
Tubo / Hose |
A |
B |
E |
| RJC7RMD12BP12 |
1/2" |
5/8" UNF |
1/2" |
27 |
| RJC7RMD34BP34 |
3/4" |
M24x1.5 |
3/4" |
32 |
| RJC7RMD1BP1 |
1" |
M31.5x1.5 |
1" |
41 |
| RJC7RMD114BP114 |
1" 1/4 |
M40x1.5 |
1" 1/4 |
50 |
材质：镀锌碳钢。
使用可重复使用的JC7配件时，工作压力不得超过技术数据表中声明的最大工作压力的90%。
Material: galvanized carbon steel.
When using reusable JC7 fittings the working pressure must not exceed 90% of the max. working pressure declared in the technical data sheet.

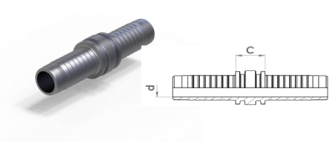

锻压接头 JC5 / JC7 从 1/4" 到 1" 1/2 Swage fittings JC5 / JC7 from 1/4" to 1" 1/2
锻压接头适用于JC5和 JC7 软管连接
SWAGE FITTING FOR JC5 AND JC7 HOSE CONNECTION
| Codice / Part Nr. |
Tubo / Hose |
D |
C |
| RPG1414 |
1/4" |
4 |
17 |
| RPG3838 |
3/8" |
7 |
17 |
| RPG1212 |
1/2" |
9.5 |
18 |
| RPG5858 |
5/8" |
12 |
18 |
| RPG3434 |
3/4" |
15 |
19 |
| RPG11 |
1" |
20 |
21 |
| RPG114114 |
1" 1/4 |
26 |
24 |
| RPG112112 |
1" 1/2 |
32 |
24 |
